Drip Oiler
LUBRICATION ELECTRICAL TIMER

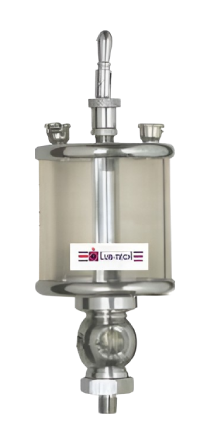

Drip Feed Oilers are Single Point Lubricators and are mounted directly on the Lubrication Points. These oilers dispense oil by
gravity from transparent reservoir through Needle Valve. The Needle Valve is joined with Toggle Pin by which the Operator can
On / Off the flow manually. The flow of the oil is controlled by adjusting the needle Valve and can be visualized from the in built
Sight Glass. These Oilers are available in different Thread Size from 1/4″ BSP to 3/8″ BSP.
MODEL SELECTION CHART
| Model | Capacity | L1 | L2 | L3 |
| LTS – 15 | 15ml | 40 | 90 | 36 |
| LTS – 35 | 35ml | 55 | 05 | 44 |
| LTS – 75 | 75ml | 55 | 115 | 56 |
| LTS – 150 | 150ml | 55 | 125 | 65 |
| LTS – 250 | 250ml | 55 | 135 | 84 |
| LTS – 450 | 450ml | 55 | 180 | 84 |
| LTS – 750 | 750m | 55 | 180 | 110 |
