Motorised Lubrication Unit

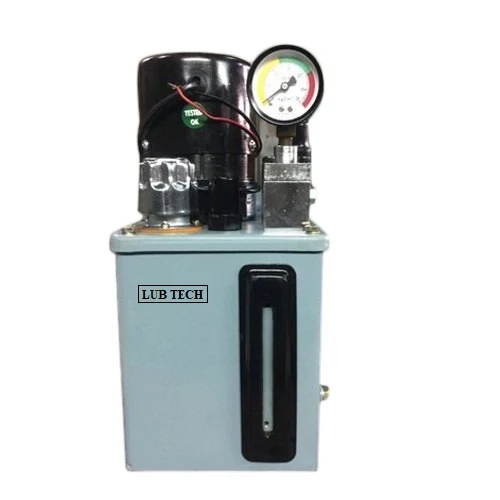

Motorised lubrication- unit single phase
Model LTMLS2800(LX)
Motorised Lubrication System for oil, having reservoir Cap. 2.8 ltr(transparent) Motor-90W, 220/110VAC, 1340 RPM Discharge 1 LPM, Pr. setting 10-12 kg/cm²Optional: Float switch(Vertical) Pressure switch.
Model LTMLU-03
Motorised Lubrication System for oil, having reservoir Cap. 3 ltr(metalic) Motor-90W, 220/110VAC, 1340 RPM Discharge 1 LPM, Pr. setting 10-12 kg/cm² Optional: Float switch(Vertical/Horizontal) Pressure switch.
Motorised lubrication unit Three Phase types
Model LTMLS2800(LX)
Motorised Lubrication System for oil, having reservoir Cap. 2.8 ltr(transparent) Motor- HP 0.9/0.12, 415VAC, 1340 RPM Discharge 1 LPM, Pr. setting 12-15 kg/cm² with Pr. Switch and float switch.
Model LTMLU-03
Motorised Lubrication System for oil, having reservoir Cap. 3 ltr(metalic)Motor- HP 0.9/0.12, 415VAC, 1340 RPM Discharge 1 LPM, Pr. setting 12-15 kg/cm² with Pr. Switch and float switch (Vertical/Horizontal).
Model LTMLU-05
Motorised Lubrication System for oil, having reservoir Cap. 5 ltr Motor- HP 0.25/0.18, 415VAC, Discharge 1.25 LPM, Pr. setting 18-20 kg/cm² with Pr. Switch and float switch (Vertical/Horizontal).
Model LTMLU-08
Motorised Lubrication System for oil, having reservoir Cap. 8 ltr Motor- HP 0.25/0.18, 415VAC, Discharge 3 LPM, Pr. setting 20-22 kg/cm² with Pr. Switch and float switch (Vertical/Horizontal)
Model LTMLU-30
Motorised Lubrication System for oil, having reservoir Cap. 30 ltr Motor- HP 0.25/0.18, 415VAC, Discharge 3 LPM, Pr. setting 20-22 kg/cm² with Pr. Switch and float switch (Vertical/Horizontal), and with return line.
Model LTS OCS
200LTS
Motorised Lubrication System for oil, having reservoir Cap. 200-1000ltr Motor- HP 0.5/0.37, 415VAC, Discharge 50-500 LPM, Pr. setting 0-10 kg/cm² with Pr. Switch and float switch (Vertical/Horizontal) ad with return line suitable with cooling system.
